Item specifics
  • Sensor Size(Inch): 1/3
  • Power: 220v
  • Samrt Home Interface: No
  • Communication Interface: Wired
  • Access Control: Inductive Card
  • Display Screen Size(inch): 7
  • Power: 220v
  • Answering Mode: Hands-free
  • Material: aluminium alloy
  • IP Camera Interface: No
  • Zone Input: None
  • Type: Intercom System
  • Brand Name: BESTWILL
  • Camera Sensor type: CMOS
  • Technology: Analog
  • Model Number: 718C2A
  • Doorbell: Yes
  • Kit Configuration: One to One video doorphone
  • Size: 30cm x 25cm x 20cm
  • Installation: Wall Mounting
  • Connection Method: Wired
  • Display Screen Type: Color
  • Waterproof: Yes
  • Camera: other
  • Resolution: other
  • Viewing Angle (°): other
  • Brightness: 200cd/㎡
  • Input voltage: AC100-240V
  • Effective distance: 200M(4*0.75mm)
  • Indoor unit installation method: wall-mounted type
  • Resolution digital: 800*480pixel
  • Talk time delay: 120S
  • Operating temperature: -20 to 60 degree
  • Overall poer consumption: 6W max 400mA
  • Monitor time delay: 40S
  • Visual angle: up 50degree,down 70 degree,left or right 70degree
Product Description
Descruiption:

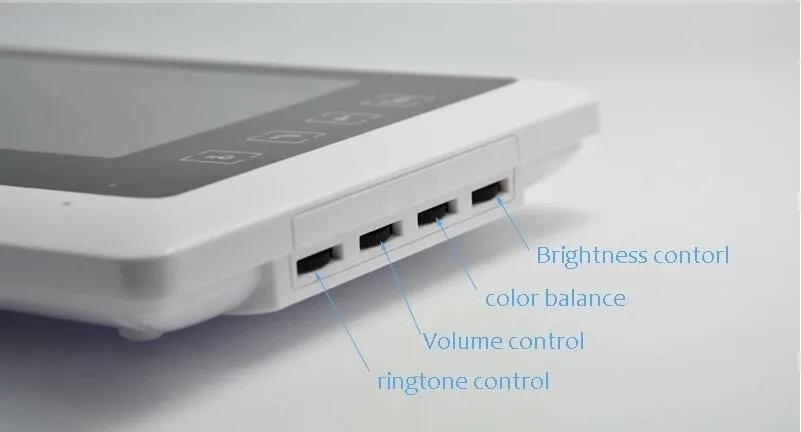

This set is a new fashional Video door phone system,one to one night version,we offer a few method to unlock indoor or outdoor,you can adjustment the volume .brightness and blance of color by your self,it is popular use in hotel.family house..

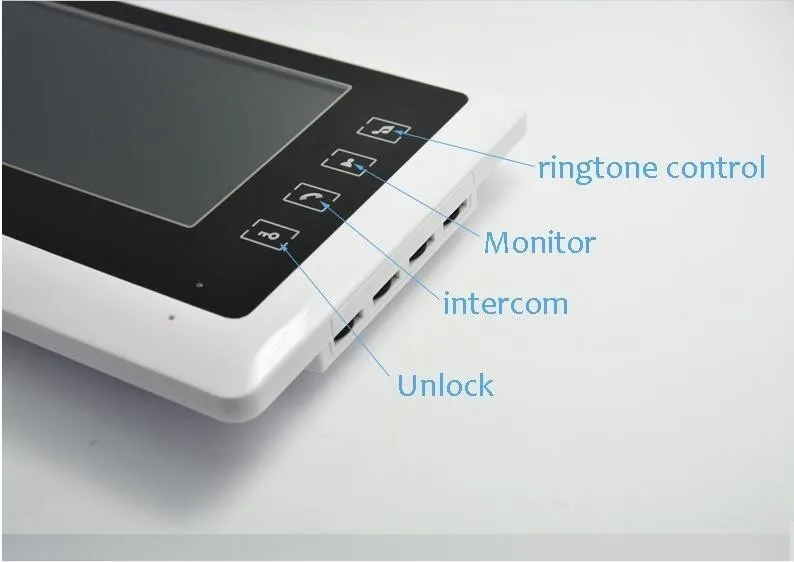

Indoor unit:
12

Outdoor unit specification:
1.Infrared lamp lighting distance:approximate 4 meters
2.Gain control:auto
3.Resolution:600 lines
4.Talk time delay:120S
5.Image transmission distance:approximate 200 meters
6.Visual angle:92 degree
7.KW:2W max
8.Power:DC 15V
9.Camea:High definition and colorful CMOS
10.Outdoor infrared night vision function:10 LUX infrared
11.Outdoor unit installation:embedded or wall-mounted type
HTB1FOJBKpXXXXcfXFXXq6xXFXXXB

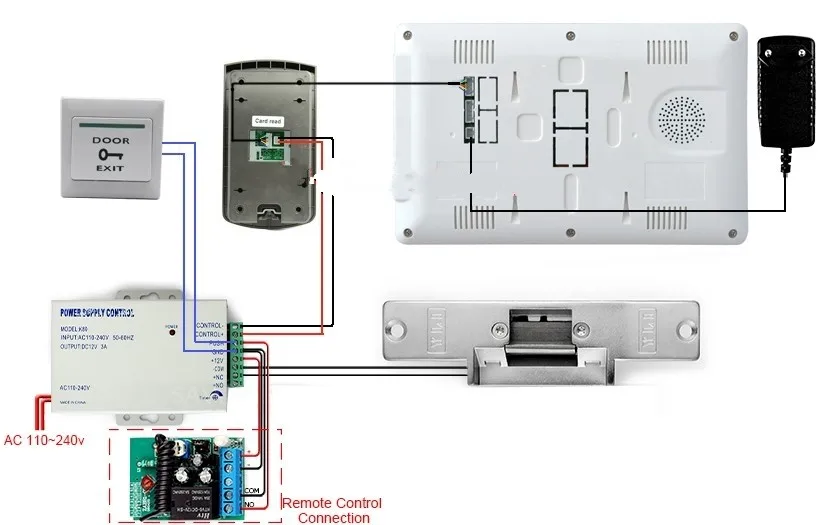

Indoor unlock:
A:Press the unlock button on the indoor unit
B:Press the exit button
C:press remote control(if the wireless distance is enough)
Outdoor unlock:
A:Use RFID card (this kit include 5 RFID card and 2 manage card)
B:Use wireless remote control
HTB1aTQiMpXXXXbYXFXXq6xXFXXXtHTB1BTZBMpXXXXbBXXXXq6xXFXXXBHTB1ffgwMpXXXXXLXpXXq6xXFXXXSHTB12IWKMXXXXXaMXVXXq6xXFXXX5
