Report item
Item specifics
  • Brand Name: JERUAN
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Analog
  • Camera Sensor type: CMOS
  • Power: 15V DC
  • Material: METAL ABS
  • Zone Input: None
  • Access Control: Inductive Card
  • Resolution: > 420 TV Line
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/3
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to Two video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 65
  • Display Screen Type: Color
  • Model Number: V70T-ID-2
  • Camera: color
  • Power: 100V~240V
Product Description

7" Wired Home Security Video Intercom Door Phone RFID Keyfob Doorbell System



V70T-2









Description:

Functions of this product are reliable and convenient to use and install. Hence, this product is the ideal theft prevention equipment.It is widely used in single-family houses, villas, office and so on, meanwhile it also the ideal present giving to friends or relatives.In order to create more comfortable and securer living environment, please choose our visible intercom doorbell product to ensure your safety and comfort.It is a luxury household security product for one-family buildings or upscale villas.  It adopts advanced technology and the latest computer chips which highly improves the  stability and durability of the system.
It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.

Features:
  • 7" TFT digital color LCD;

  • Touch sensor button on the panel

  • 16 melodies for ringing selection;

  • Show outdoor image manually.

  • Dual-way intercom;

  • Monitor unlock control;

  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.

  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.

  • Hands-free intercommunication.

  • Brightness, chroma and volume adjustable

  • Ring cancel function

  • Comes with 5 RFID keyfobs, a push release button switch.

  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.

  • Additional monitor available up to 4(optional) and 3 outdoor cameras at most.(It needs a controller when install 2/3 outdoor cameras, please contact us if you want to install 2/3 cameras)

V70T_21V70T_31V70T_41V70T_71

ID_3 ID_31 ID_61 ID_71

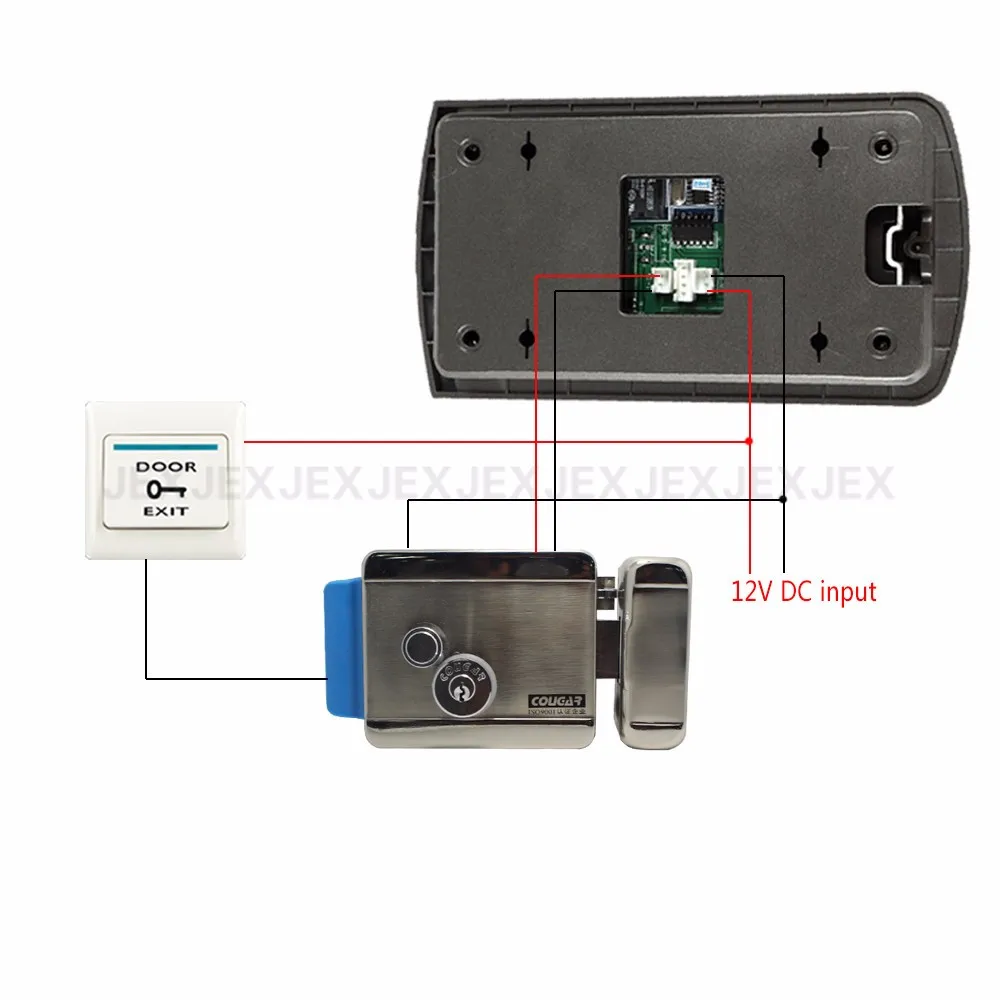

Wiring:
We recommend you to buy this 12V 3A power supply if you use strike lock, magnetic lock and drop bolt lock etc. Please check below link. The wiring diagram is for reference.
Note:
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.




0.2mm2

0.5mm2

1.0mm2

Indoor to outdoor max distance

30m

50m

100m

Indoor to indoor max distance

20m

50m

100m

Outdoor to Electric lock max distance

2m

3m

5m

Specification


Indoor Monitor

Display

7” TFT(16:9 display)

Resolution

800 x 480

Charger

Adapter input voltage
AC100-240V 50Hz-60Hz

Adapter output

DC15V 1500mA

Material

Aluminum panel

Installation

Surface mounting

Power consumption

waiting-0.2W Working-0.8W

Ring the bell

16-chord

Dimensions

240 x 150 x 23mm (H x W x T )

Net Weight

0.7kg



Outdoor Camera

Power

input: AC 100-240V
50/60Hz
output: DC 15V/2A

Camera

SONY 700TVL

Powe consumpt ion

Standby:2W; unlock:12w

Valid distance

80m(6*0.65MM2)

Viewing angle

92 degrees

Working temperature

-10C~+50C

Installation

Wall mounted

Dimensions

174*96*36mm(L*W*H)





Package

1 x Outdoor camera
2 x Indoor monitor
2 x power adapter (We will send AU/EU/US/UK type according to your address)
5 x RFID keyfobs (Please leave us message if you need more keyfobs)
1 x testing cable
1 x exit switch
1 x connetcors and screws for installation
1 x user manual

Shipping:
1. When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.
2. We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery.
We will not refund shipping charges for refused shipments.
3. The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
4. We only ship to the confirmed address provided by Alipay. Before you pay, please make sure your address and phone number in Alipay address notes for safe shipping.
Free Replacement:
If you receive a not-as-described (e.g. defective, incorrect, part missing) item, please contact us when you get the item. We will arrange a replacement as soon as the case is confirmed.
Suppliers Warranty:
We offer ONE YEAR warranty on this product. If your item has any warranty issue please contact us for a satisfying solution.The buyer should bear the shipping costs for return.
If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Feedback:
Your satisfaction and positive feedback is very important to us.  Please leave positive feedback and 5 stars if you are satisfied with our items and services.
If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback.  We will do our best to solve any problems and provide you with the best customer services.
Thank you for your coming.





Packaging Details
  • Unit Type: piece
  • Package Weight: 2.5kg (5.51lb.)
  • Package Size: 30cm x 25cm x 20cm (11.81in x 9.84in x 7.87in)
