Item specifics
  • Brand Name: JERUAN
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Analog
  • Camera Sensor type: CMOS
  • Power: 15V DC
  • Material: METAL ABS
  • Zone Input: None
  • Access Control: None
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/3
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to Four Video Doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 92
  • Display Screen Type: Color
  • Model Number: S708R-C3-4
  • Camera: color
  • Power: 100V~240V
  • Resolution: 700TVline
Product Description

7 inch video doorphone intercom system monitor video recording photo taking video door phone speaker free shipping

7`` color TFT LCD screen ,low power consumption without radiation ,real wide display wish high resolution.

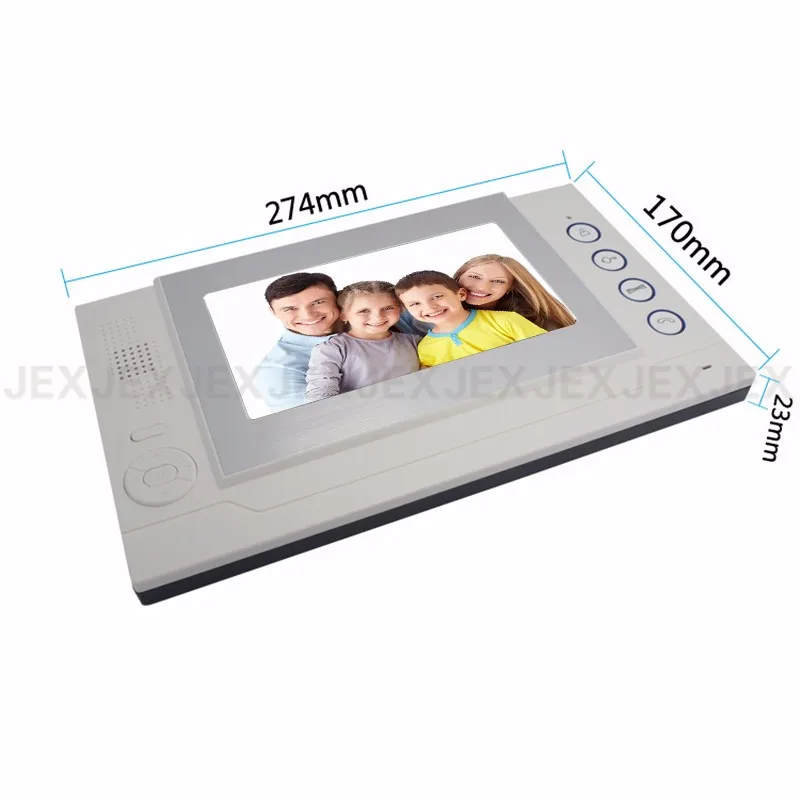

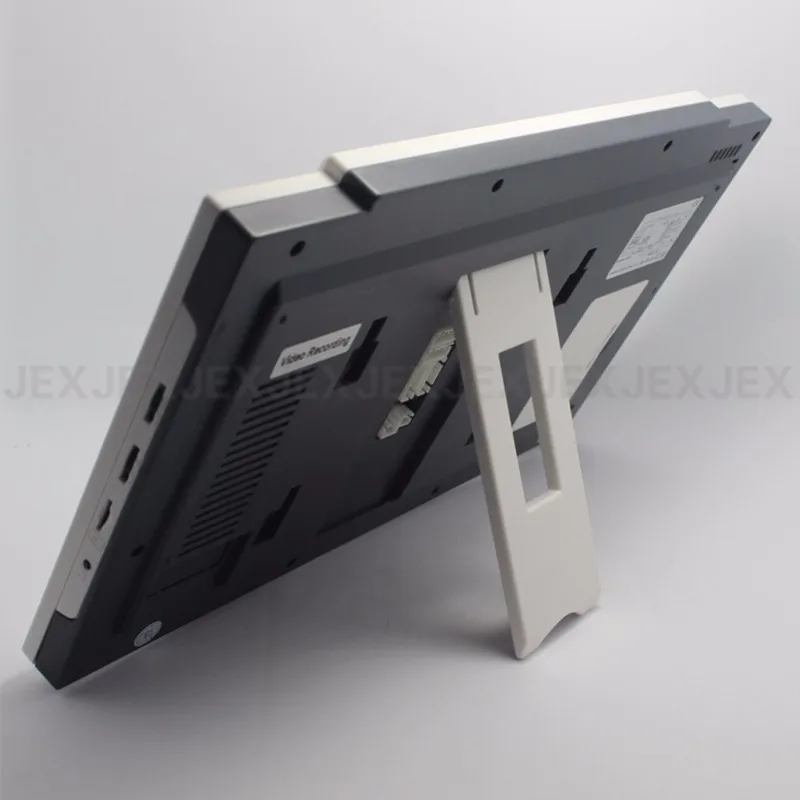

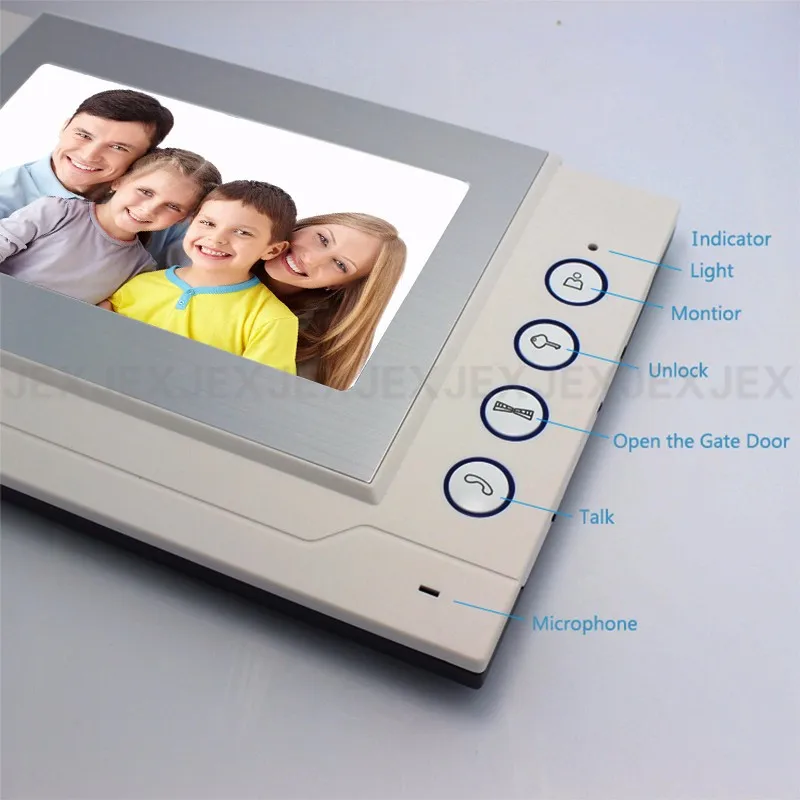

Indoor Unit Specification:

Screen size:7”(16:9 display)
Resolution: digital:800(RGB)×480Pixel
Visual angle: up 50 degree, down 70 degree, left or right 70 degree
Brightness: 200cd/centiare
Ringtone: chorded polyphonic ringtone
Sensitivity: 56db
Signal system: PAL/NTSC (optional)
Input voltage: AC 100V-240V ~ 50Hz/60Hz
Overall Power Consumption:≤6W(400mA)
Stand-by Power Consumption:<1.1W
Power Adapter Specifications: DC 15V 1000-1500mA
Talk Time Delay: 120S±10%
Monitor Time Delay: 40S±10%
Effective distance:200M(4×0.75M centiare)
Operating Temperature:-20~+60 degree
Relative humidity:10%~90%(KH)

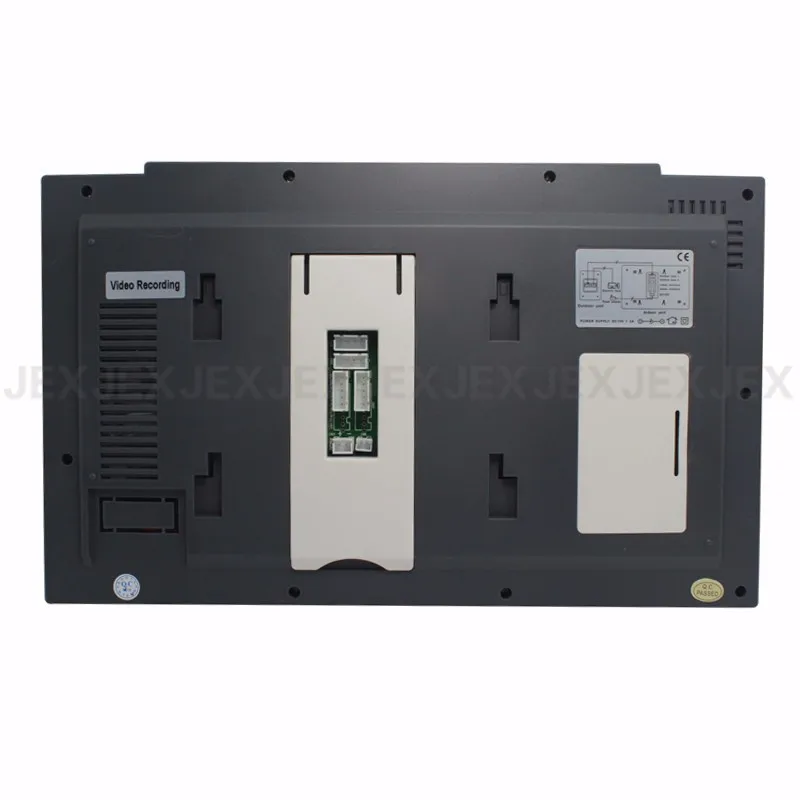

Indoor unit installation method: wall-mounted type

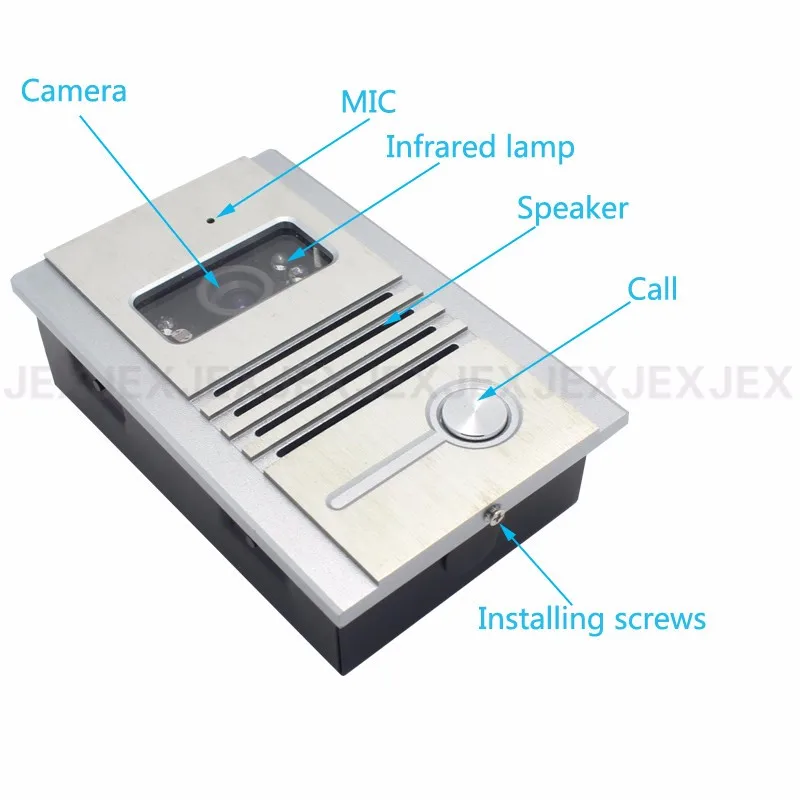

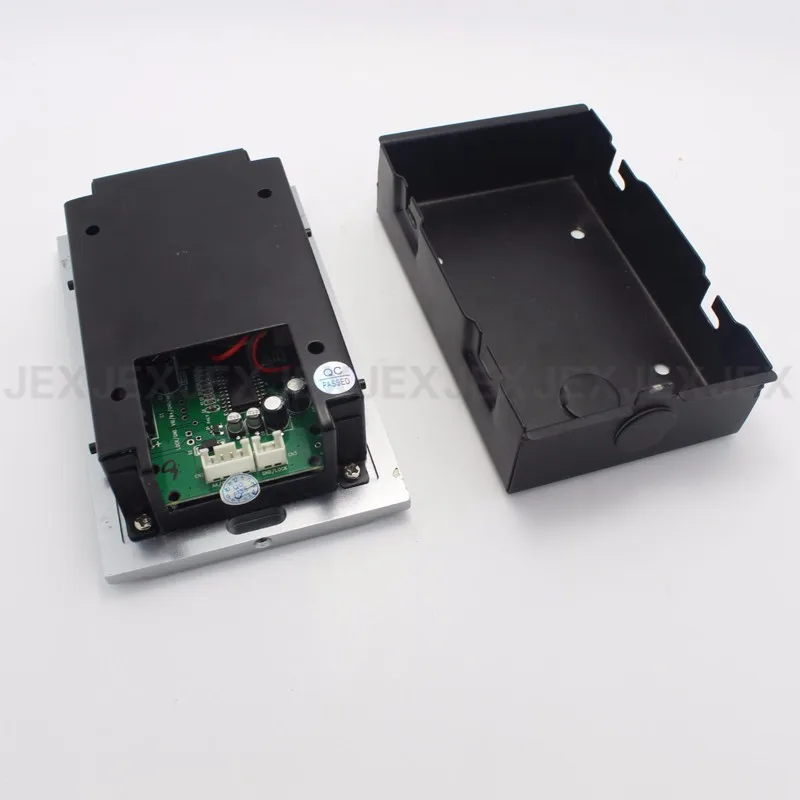

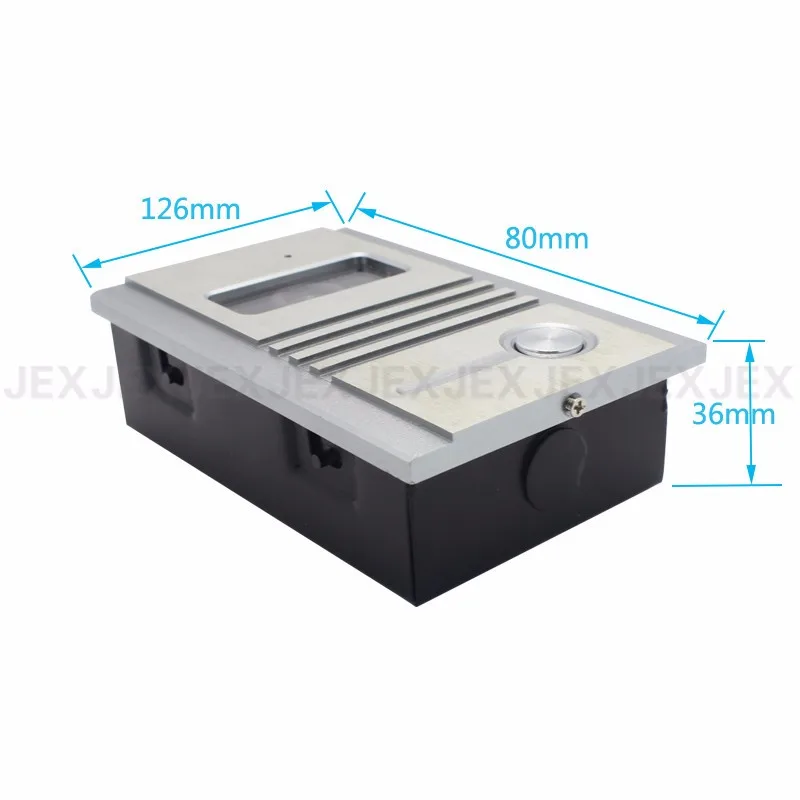

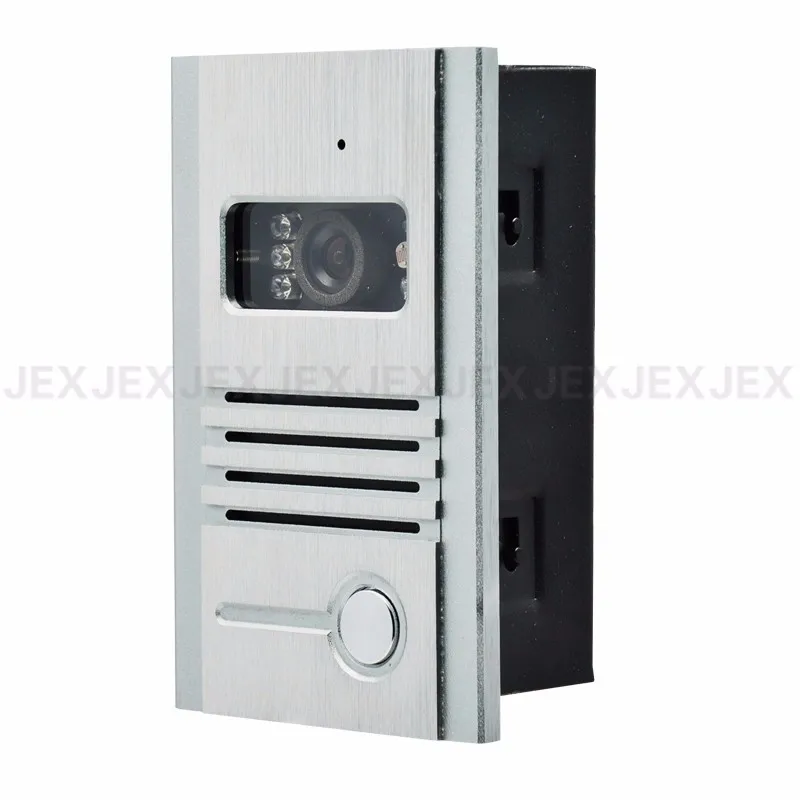

Outdoor Unit Specification:

Infrared lamp lighting distance: approximate 4 meters
Gain control: auto
Resolution: 700  lines
Talk time delay: 120S±10%
Image transmission distance: approximate 200 meters
Visual angle:  92
KW: <2W
Power: DC 15V (provided by the extension phone directly)
Camera : High definition and colorful CMOS/CCD(optional)
Outdoor infrared night vision function: 10 LUX infrared
Operating Temperature:-20~+60 degree

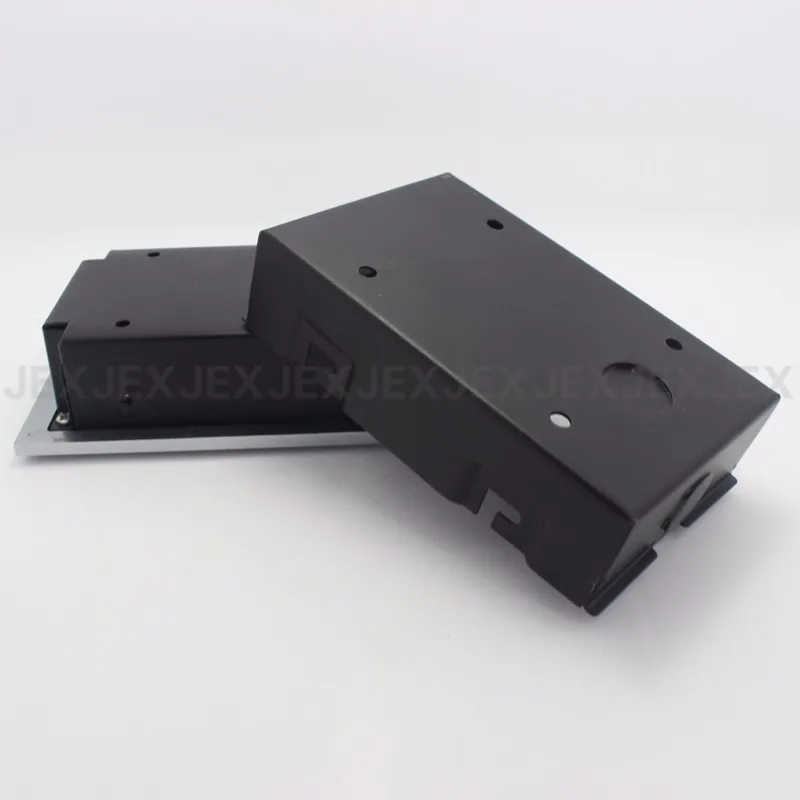

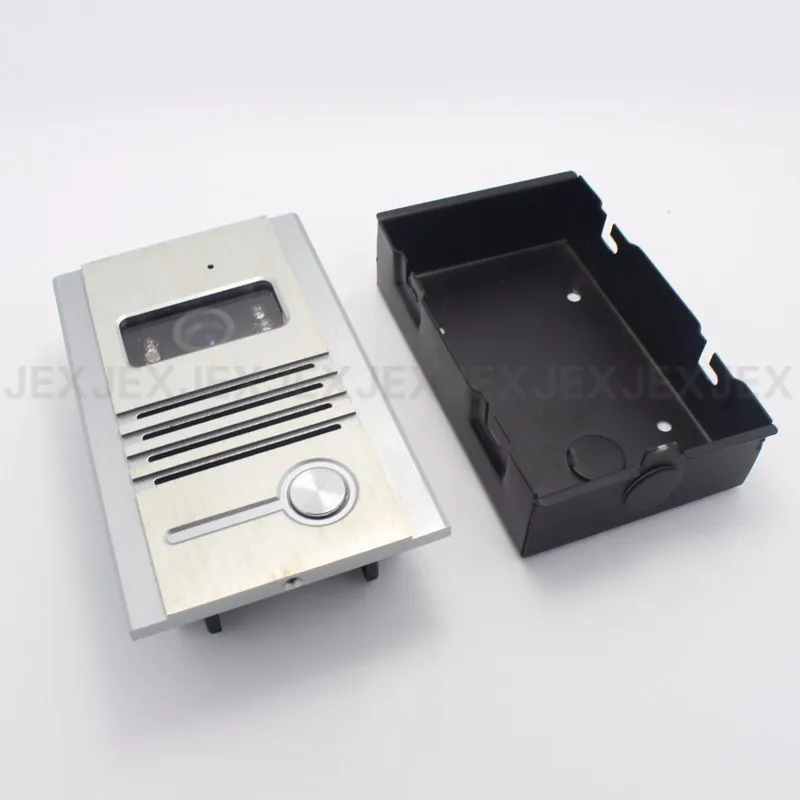

Outdoor unit installation method: embedded or wall-mounted type
708-1 (1)708-1 (2)708-1 (3)708-1 (4)708-1 (5)708-1 (6)708-1 (7)708-1 (8)c3 (3)c3 (4)C3-1C3-2C3-3C3-4C3-5
What\'s in the box:
·         4 x 7 inch LCD Indoor Device
·         1 x Outdoor Device
·         4 x Power Supply Adapter(EU Plug)
·         4 x Mounting board
·         1 x Some Wirings Connector
·         1 x A set of mounting screws
·         1 x User Manual-English
