Item specifics
  • Brand Name: JERUAN
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Analog
  • Camera Sensor type: CMOS
  • Power: 15V DC
  • Material: METAL ABS
  • Zone Input: None
  • Access Control: Inductive Card
  • Resolution: > 420 TV Line
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/3
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 65
  • Display Screen Type: Color
  • Model Number: V70H-B-ID-1-P
  • Camera: color
  • Power: 100V~240V
Product Description

7" Wired Home Security Video Intercom Door Phone RFID Keyfob Doorbell System

Unlock via RFID cards and unlock button

V70H-W-P-1









Description:

This full Hard-wired Video Door phone Intercom System consists of one 7\'\' color TFT monitor,  one door camera, 10 RFID keyfobs, a push release button. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.
With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.
Features:

  • 7" TFT digital color LCD;
  • 16 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom between the outdoor unit and indoor monitor.
  • Monitor unlock control;
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  • Hands-free intercommunication.
  • Brightness, chroma and volume adjustable
  • Ring cancel function, mute mode, do not disturb mode.
  • Comes with 5 RFID keyfobs, a push release button switch.
  • Supports maximum 500 rfid keyfobs.
  • Supports communication between two monitors
  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  • Additional monitor available up to 4(optional) and 3 outdoor cameras at most.(It needs a controller when install 2/3 outdoor cameras, please contact us if you want to install 2/3 cameras)
V70H-B-1 V70H-B-2 V70H-B-3 V70H-B-4
ID_3 ID_31 ID_61 ID_71

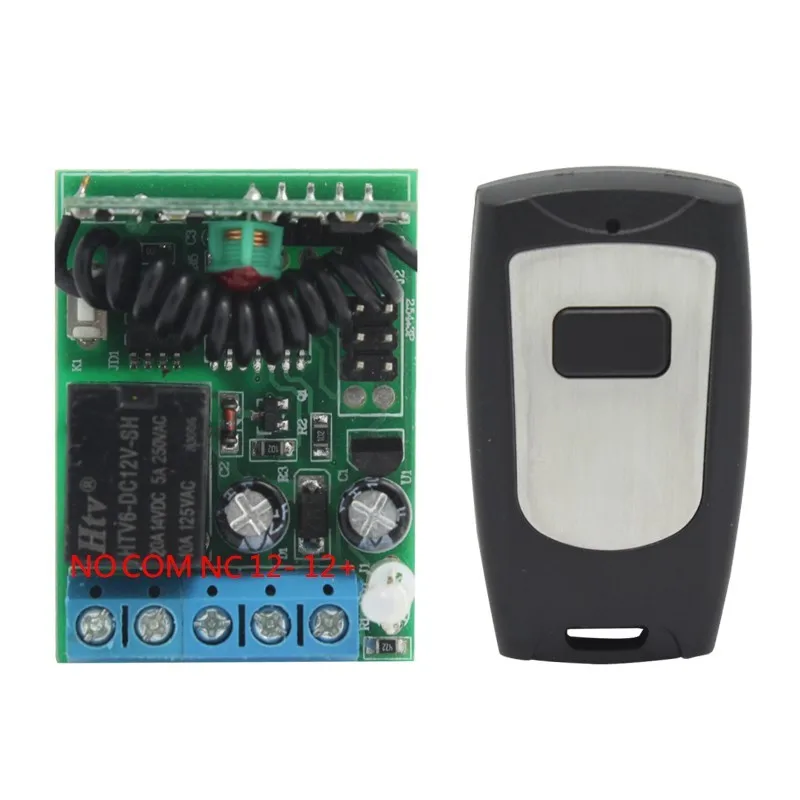

Remote Control:



If you purchase this video intercom system now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:

NOTE:The remote control without batteries

HTB1ZEipLXXXXXafXXXXq6xXFXXXQ

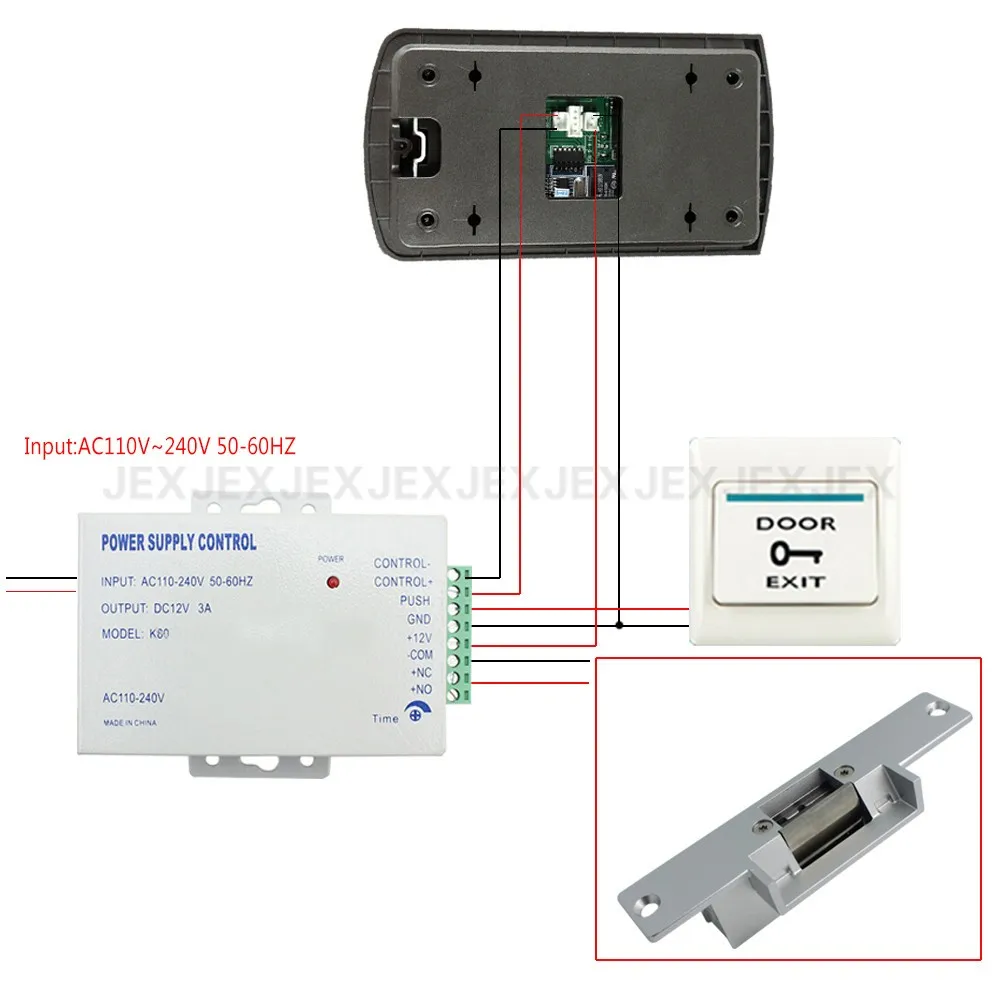

Power supply:



This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Based delay control circuit, lock time can be in 0-15 seconds
  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  • Operative device: E/M Lock, Access Controller, Exit Push Butto
HTB1HPuaLXXXXXXlXFXXq6xXFXXXw

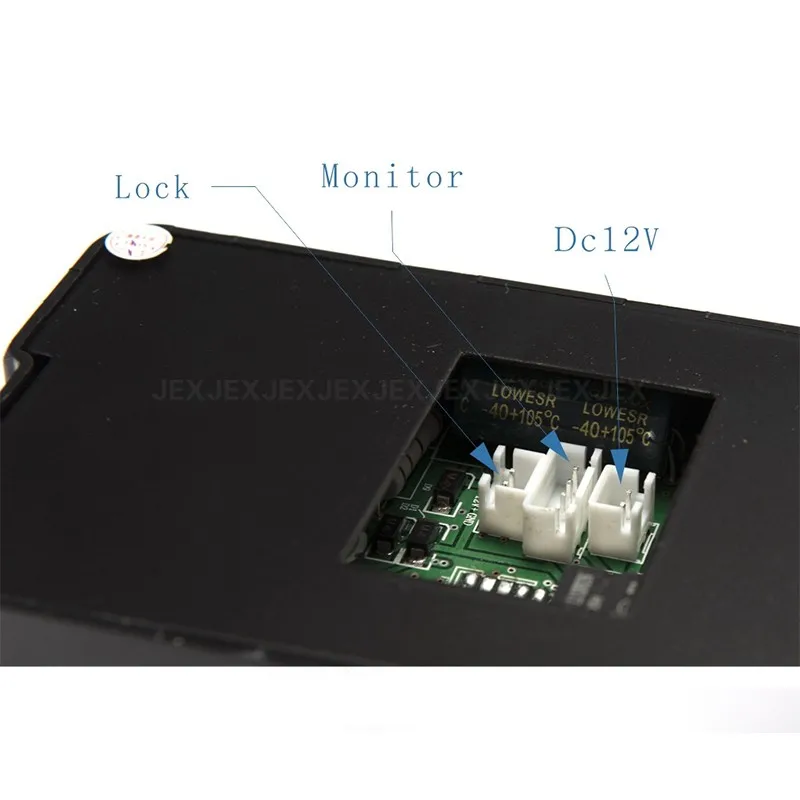

Wiring:


Note:
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.


0.2mm2
0.5mm2
1.0mm2
Indoor to outdoor max distance
30m
50m
100m
Indoor to indoor max distance
20m
50m
100m
Outdoor to Electric lock max distance
2m
3m
5m

Specification

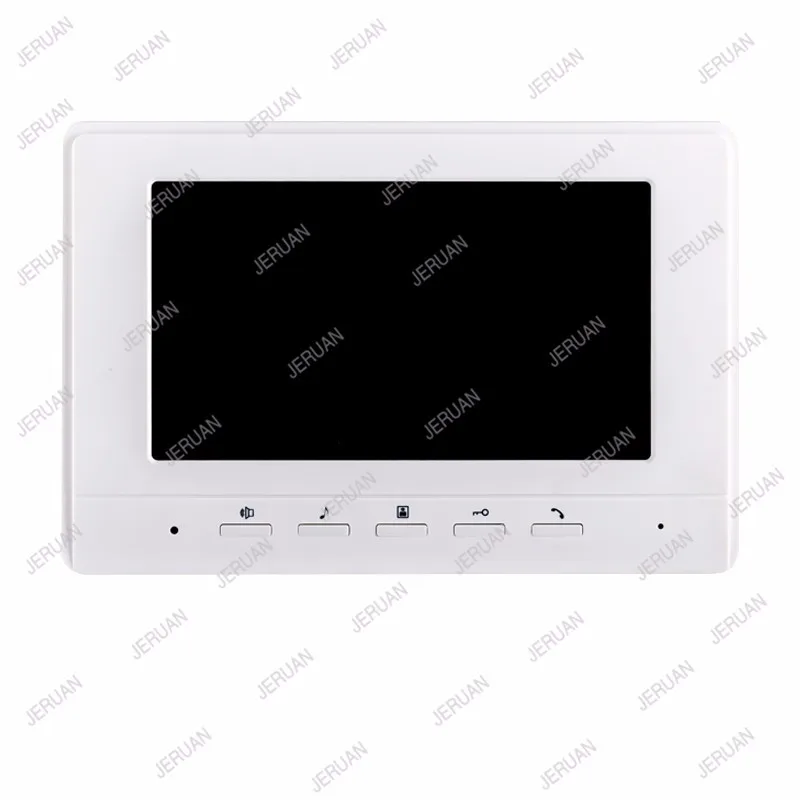

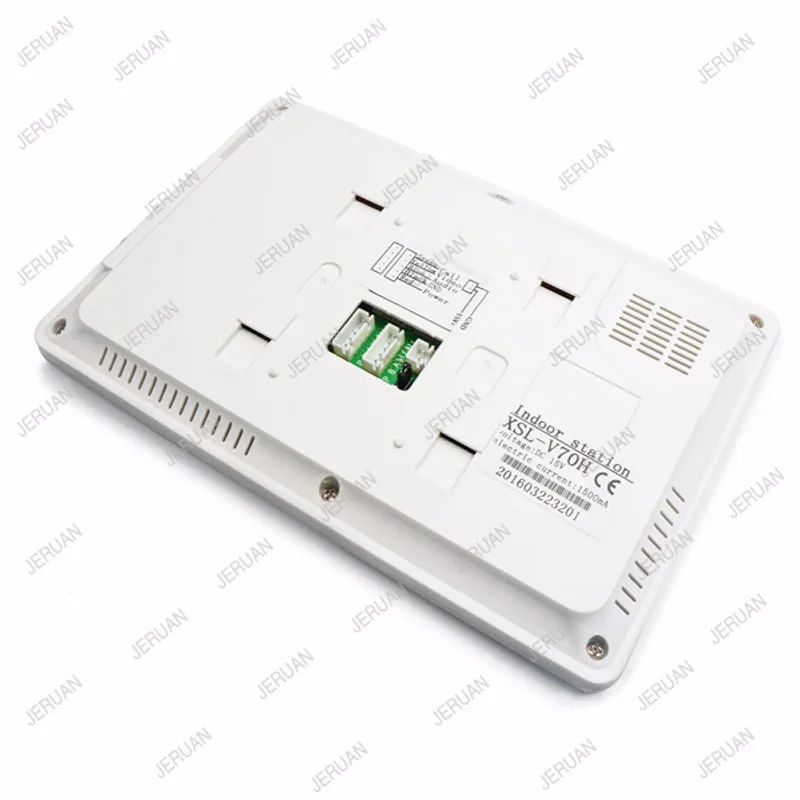

Indoor Monitor
LCD Screen
7" TFT
Resolution
800x480
Calling duration
About 120 seconds
Monitor duration
About 60 seconds
Power Consumption
Working: 9W; Standby: 2W
Adapter Input
AC 100-240V, 0.6A, 50/60Hz
Adapter Output
DC 15V, 2000mA
Working Temperature
-35 ~ 50 Celsius
Installation
Wall mounting
Material
PMMA and ABS

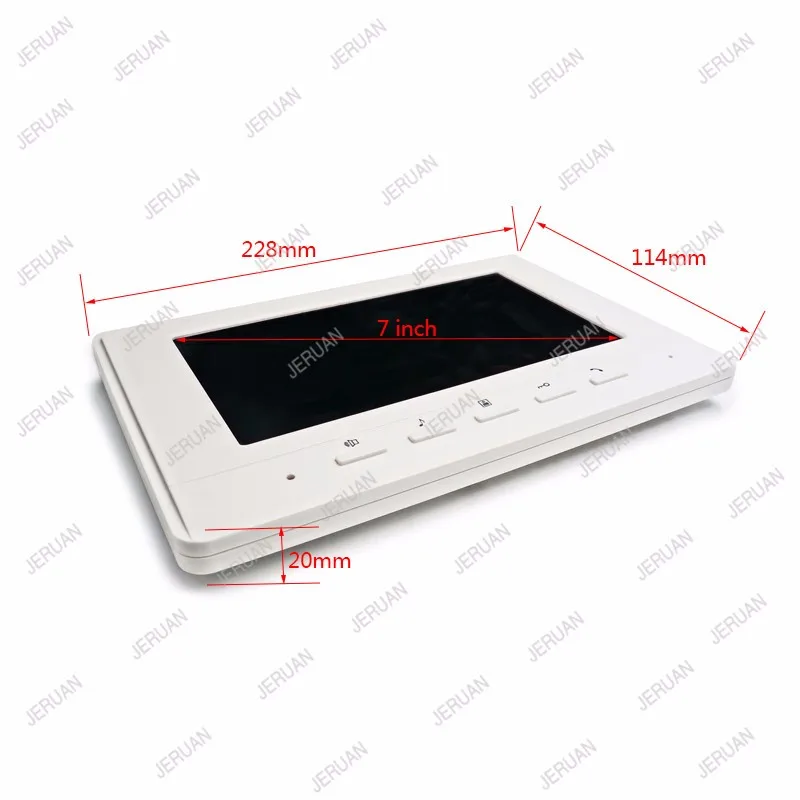

Size
228(L) * 114(W) * 20(H)mm
Net Weight
500g

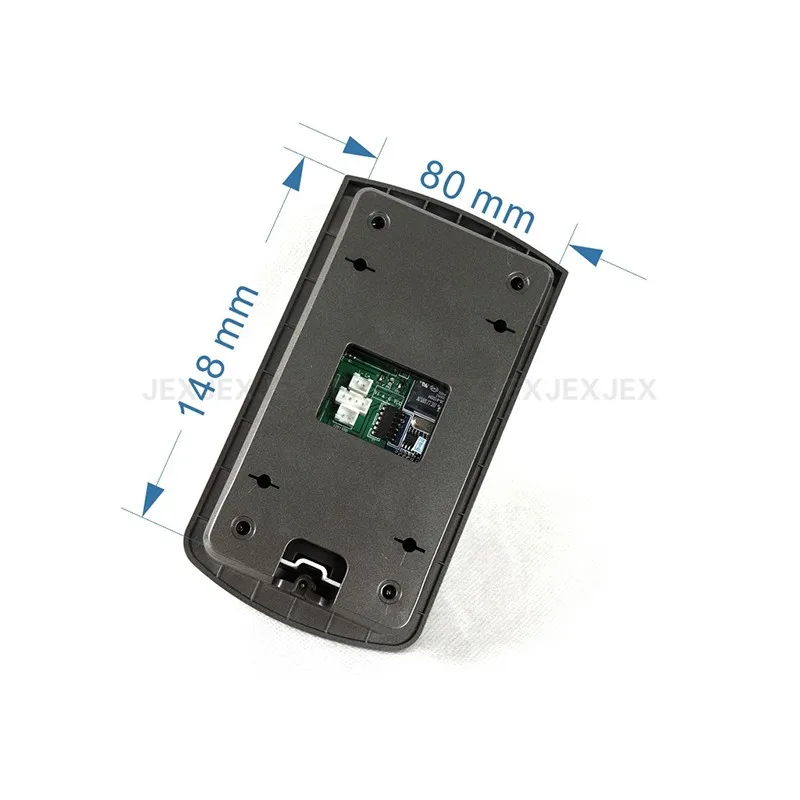

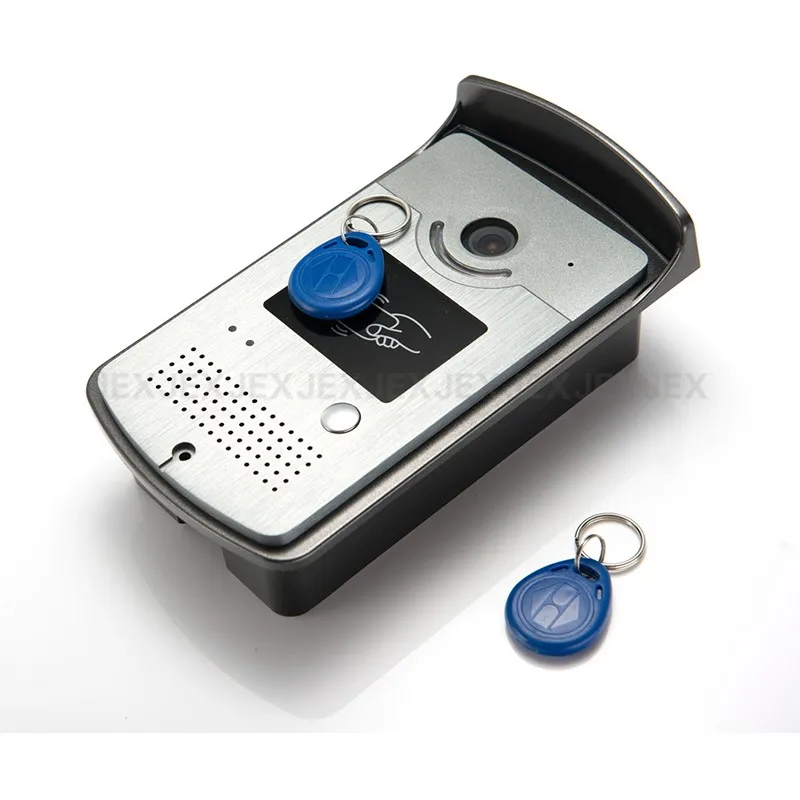

Outdoor Camera
Camera Lens
1/3" CMOS
Resolution
700TVL
illumination
0LUX / F1.2
Night Vision
Visible within 1m
Power Supply
DC 15V, 0.5A
Working Temperature
-35 ~ 50 Celsius
Case
Alunimum panels, waterproof
Installation
Wall mounting

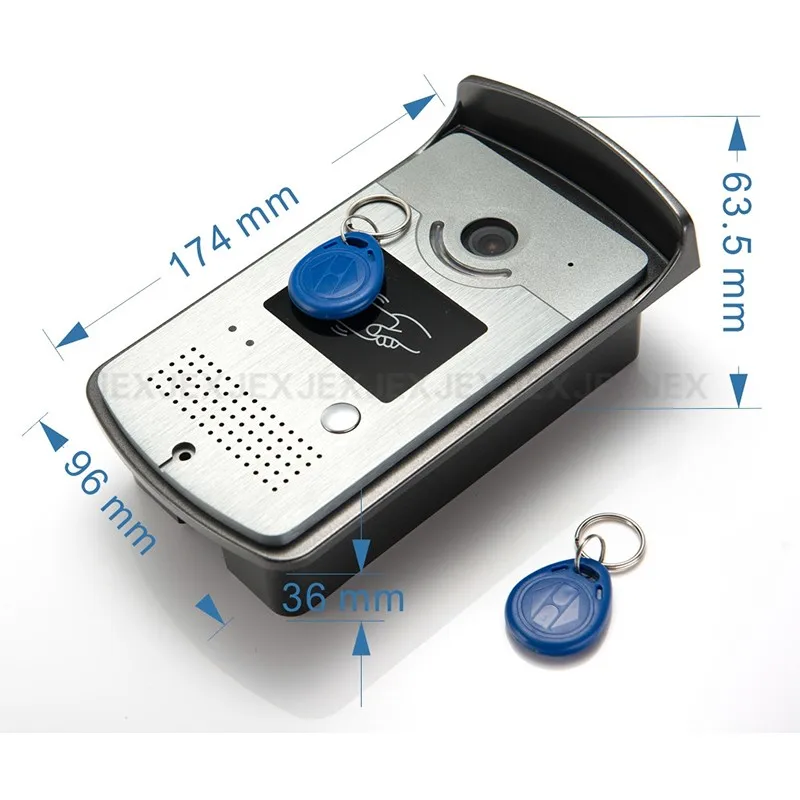

Size
174(L) *96(W) * 36(H)mm
Net Weight
420g

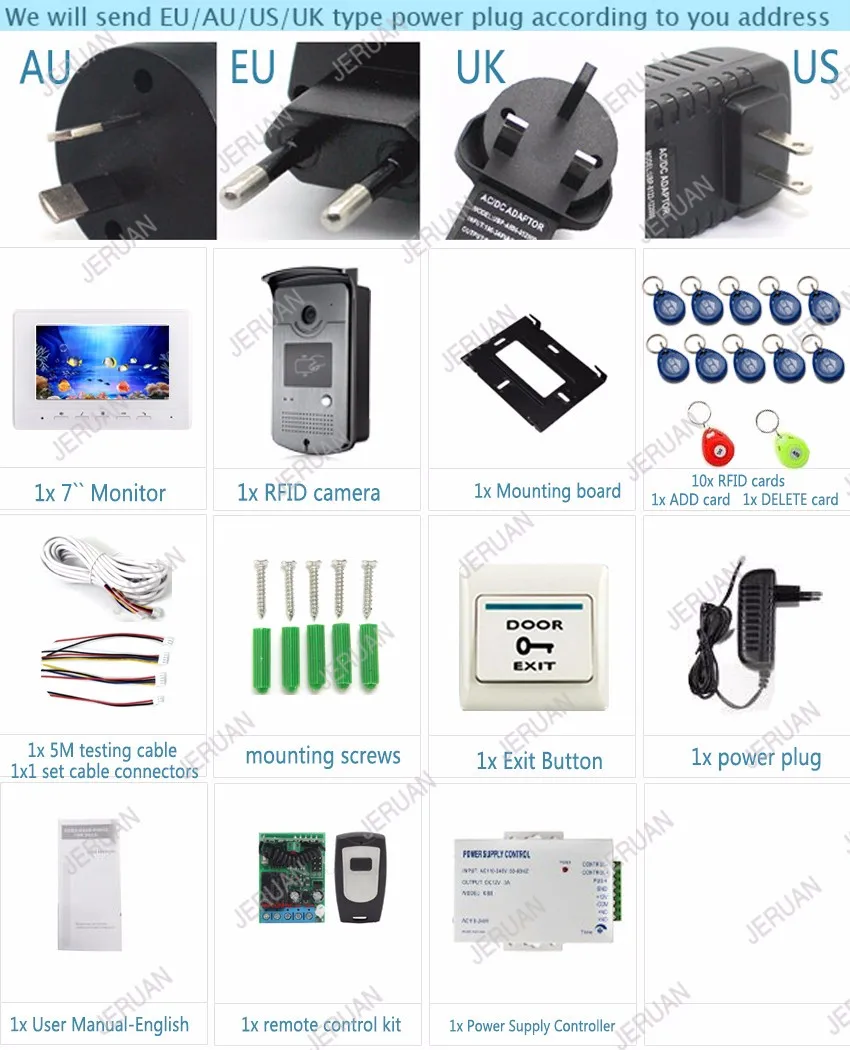

Package
